- Oil rubbed bronze handleset suitable for most door thicknesses
- Standard diameter deadbolt and passage latch
- High security option for any residential setting
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

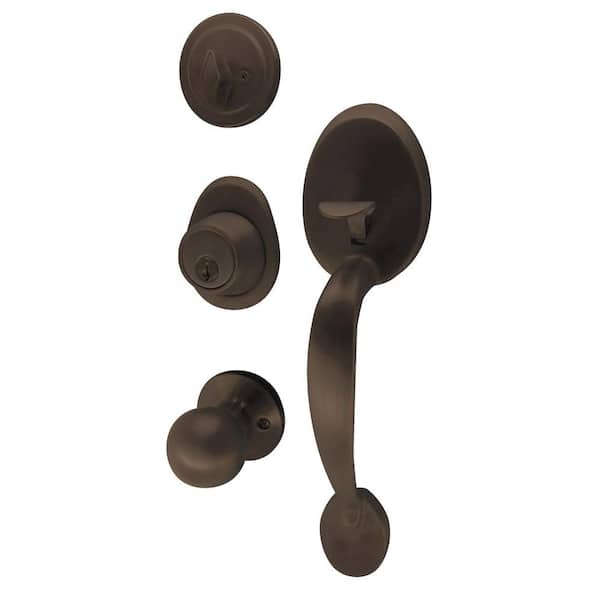

Cheltenham series Handleset. Replaces most locks with standard 2-3/8 in. or 2-3/4 in. backset. High security deadbolt features anti cut-thru pin with a full 1 in. extension. Standard diameter deadbolt and passage latch replaces almost any lock without modifications.
Highlights
- Old world oil rubbed bronze finish adds beauty, dimension and style
- Replaces most locks using only a standard Phillips screwdriver
- 6-way adjustable deadbolt and latchbolt features square corner and radius corner plates and standard 1 in. drive in feature
- Sleek contemporary design
- KW1 keyway
- How To Install A Door Lock
- Return Policy
Product Information
Specifications
Dimensions: H 17.25 in, W 7.5 in, D 5.25 in
Dimensions
Assembled Depth (in.) | 5.25 in | Assembled Height (in.) | 17.25 in |
|---|---|---|---|
Assembled Width (in.) | 7.5 in | Backset Size (in.) | Adjustable |
Deadbolt Bore Hole Diameter (in.) | 2.125 in | Deadbolt Cross Bore Diameter (in.) | 1 in |
Deadbolt Strike Height (in.) | 2.25 in | Deadbolt Strike Width (in.) | 1 in |
Deadbolt Throw Length (in.) | 1 in | Deadbolt Trim Ring Diameter (in.) | 0 in |
Handle grip length (in.) | 5.0 | Inside top plate length (in.) | 0.0 |
Inside top plate width (in.) | 0.0 | Knob Diameter (in.) | 2 in |
Knob/lever bore hole diameter (in.) | 2.125 | Knob/lever cross bore diameter (in.) | 1.0 |
Knob/lever housing height (in.) | 2.75 | Knob/lever housing width (in.) | 2.625 |
Knob/lever strike height (in.) | 2.125 | Knob/lever strike width (in.) | 1.0 |
Knob/lever throw length (in.) | 1.0 | Maximum Door Thickness (in.) | 1.75 in |
Minimum Door Thickness (in.) | 1.375 | Outside bottom handle plate length (in.) | 11.75 |
Outside bottom handle plate width (in.) | 2.5 | Outside key plate length (in.) | 3.5 |
Outside key plate width (in.) | 2.5 | Outside top handle plate length (in.) | 0.0 |
Outside top handle plate width (in.) | 0.0 | Projection (in.) | 2.5 |
Details
Commercial/Residential | Residential | Deadbolt strike | Round corner |
|---|---|---|---|
Deadbolt Type | Single Cylinder Deadbolt | Door Handing | Universal |
Door Lock Style | Classic | Door Locks & Knobs Product Type | Keyed Handlesets |
Door Type | Keyed Entry | Features | No Additional Features |
Finish | Oil Rubbed Bronze | Handleset Product Type | 2 Piece Front & Back |
Hardware Color Family | Bronze | Included | No Additional Items Included |
Knob style | Full ball | Knob/lever strike | Round corner |
Lock Type | Keyed | Material | Metal |
Product Weight (lb.) | 5.03 lb | Returnable | 90-Day |
Security/ANSI Grade | ANSI Grade 3 (Good) | Total Number of Keys Included | 2 |
Warranty / Certifications
Certifications and Listings | No Certifications or Listings | Manufacturer Warranty | Limited Lifetime |
|---|
Questions & Answers
what is the distance between the hole for the handleset and the bottom screw? What thickness of t...
There seems to be different versions of this model. Does this have a hole in the handle for the b...
Hi blubusdrvr, we do not offer a dummy door knob that matches the Ultra Hardware Cheltenham Polished Brass Door Handleset and Single Cylinder Deadbolt on Homedepot.com. Thanks for shopping Home Depot!
Can this set be re-key?
Yes, this set can be re-keyed.
Do you have this item in stores close to zip code 77401
Hi Juan, this Cheltenham Oil Rubbed Bronze Handle Set and Single Cylinder Deadbolt is an online exclusive item as there is no listed store SKU. It can be shipped to you directly or if it is eligible, shipped to a Home Depot store: however, it is not available to purchase directly from a Home Depot store. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!
