- Full-flow design for maximum water output
- Forged brass for durability and superior corrosion resistance
- 100% tested in the US to ensure years of reliable use
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

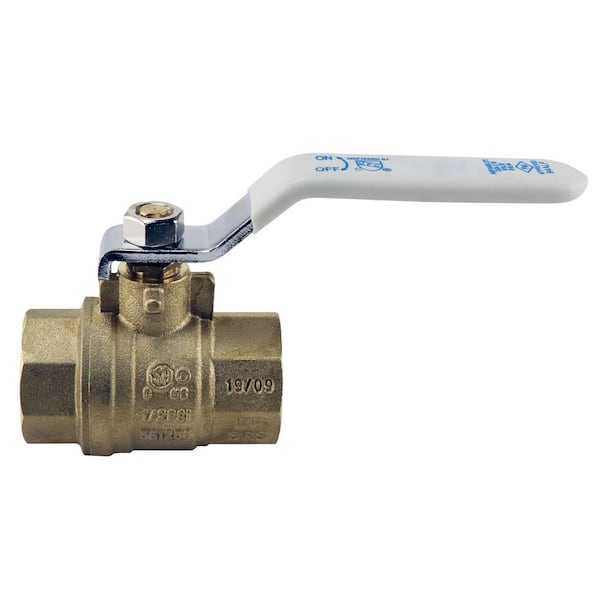

The 94ALF Series Ball Valve by Apollo Valves is a lead free forged brass ball valve that combines reliable operation with the utmost economy. The 94ALF Series is ideal to gas, fuels, fire protection and general plumbing and HVAC applications including potable water. Featuring quarter-turn lever handle flow control, the 94ALF Series ball valve is a versatile and reliable ball valve.
Highlights
- Solid chrome plated ball that helps the fluid flow smoothly at a constant velocity
- Adjustable stem packing for easy field adjustments
- Blow out proof stem design for safety
- Quarter-turn lever handle design ensure proper flow control at all times
- Ideal for potable water
- Superior corrosion resistance
- Apollo international 94ALF series lead free ball valves are UL Listed and CSA approved
- Easily identified with white lever grips for lead free
- Imported valve that meets Apollo standards
- NPT threaded ball valve that meets MSS-SP 115
- 600 psig CWP, non-shock, 150 psig for saturated steam
- Female pipe thread connections for ease of installation in any application
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 5 in, W 1.5 in, L 5 in
Dimensions
Inlet Diameter (In.) | 3/4 | Outlet Diameter (In.) | 3/4 |
|---|---|---|---|
Product Height (in.) | 5 in | Product Length (in.) | 5 in |
Product Width (in.) | 1.5 in |
Details
Application | Potable Water | Compatible Pipe Material | Multi-Purpose |
|---|---|---|---|
Connection | FIP | Features | Corrosion Resistant, Lead Free |
Handle Style | Lever | Indoor/Outdoor | Indoor, Outdoor |
Material | Brass | Maximum Pressure (PSI) | 600 PSI |
Maximum Working Temperature (F) | 400 | Pack Size | 1 |
Product Weight (lb.) | 0.66 lb | Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | 5 Years: Must be installed per published installation instructions. |
|---|
Questions & Answers
I need a 3 or 4" nipple connectors one each end of this valve for my incoming water line for a project I am doing. Does nipple connector have to be an MNPT or can it be a 3/4 inch threaded MIP? Would I use teflon tape? Thank you
Needs to be MNPT and yes, please use teflon tape.
is this valve rated for heating oil?
Yes, as long as you are below the working temp and pressure of the valve.
Can someone verify that this SKU is still Apollo brand? I went to my local store and this same SKU was an Everbilt part.
Deepening on store and location, you will see either the Apollo or Everbilt.
Is this fitting dezincification resistant?
Yes, the 94ALF series valves are dezincification resistant.
Can this valve be installed on a natural gas line that is located outside (back yard)? Is it weatherproof, or what kind of weather protection would be needed?
The valve is gas rated but we would recommend it being installed in some sort of valve box.
Is there a lock to keep the valve in the closed position?
No, this is not a lockable valve.
Can Model 94ALF10501A be used outdoors for natural gas? Going to tap the line after the meter and adding the valve there.
Yes, it is ANSI Z21.15 approved.
Can the 1.5 valve be used for hot water such as on a boiler for heating?
The Apollo 94ALF series valves have a max temperature rating of 400º F, as long as you are below that you shouldn't have any issues.
