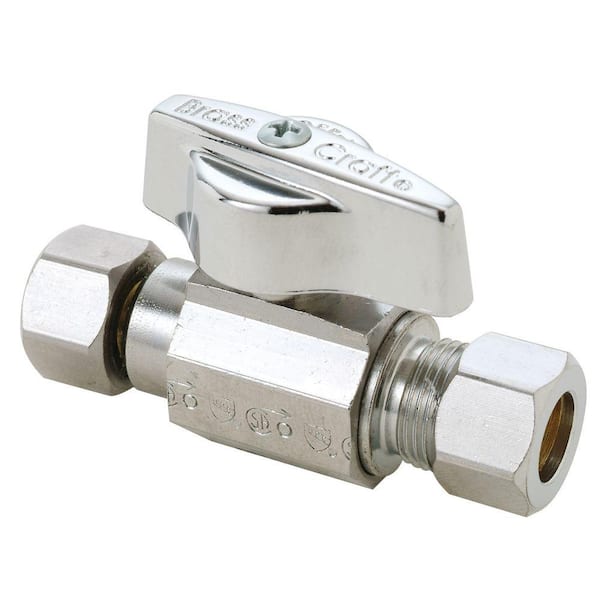

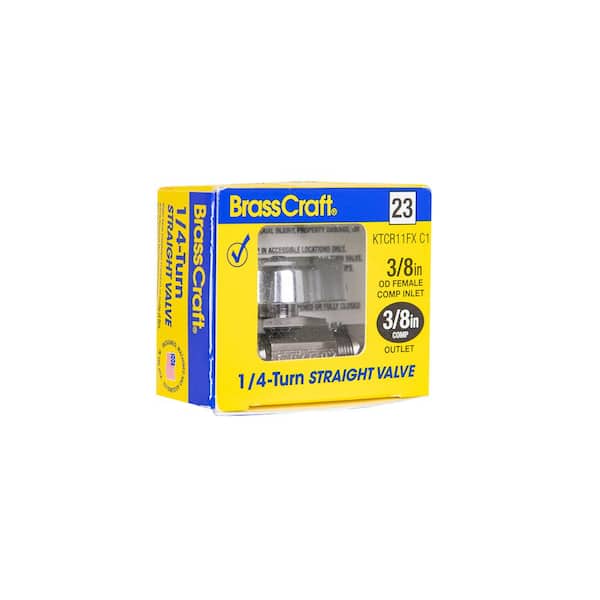

3/8 in. Female Compression Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Ball Valve
- Use to control water flow to household plumbing fixtures
- Easy repair without shutting off water to your home
- Quarter-turn lever handle design for simple flow control
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
BrassCraft 3/8 in. Female Compression Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Straight Ball Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.
Highlights
- Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
- Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
- Brass ball ensures smooth operation without freeze-ups even after long periods without use
- Machined body provides strength, durability and long-lasting performance
- Easy-to-remove handle protects against accidental operation during rough-ins
- Chrome-plated brass
- Temperature rating: 40° to 180°F
- Pressure rating: 125 psi maximum
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
- Return Policy
Product Information
Specifications
Dimensions: H 2.75 in, W 2.25 in, D 1.19 in
Dimensions
Inlet Diameter (In.) | 1/4 | Inlet Size | 1/4 In. |
|---|---|---|---|
Outlet Diameter (In.) | 3/8 | Product Depth (in.) | 1.19 in |
Product Height (in.) | 2.75 in | Product Length (in.) | 1.188 in |
Product Width (in.) | 2.25 in | Valve Inlet Diameter (in.) | 3/8 |
Details
Application | Potable Water | Color/Finish | Chrome |
|---|---|---|---|
Color/Finish Family | Brass | Compatible Pipe Material | Copper |
Compatible Product | Faucet, Other, Refridgerator, Washing Machine | Connection | Comp x Comp |
Features | Lead Free | Indoor/Outdoor | Indoor, Outdoor |
Inlet Fitting End Type | Compression | Material | Brass |
Maximum Pressure (PSI) | 125 PSI | Maximum Working Temperature (F) | 180 |
Outlet Fitting End Type | Compression | Pack Size | 1 |
Product Weight (lb.) | .254 lb | Returnable | 90-Day |
Stop Valve Type | Straight | Valve Configuration | Straight |
Valve Connection | Compression | Valve Type | Stop |
Warranty / Certifications
Manufacturer Warranty | Limited Manufacturer Warranty |
|---|
Questions & Answers
Can you use on pex
The inlet is female 3/8" OD compression which is designed to connect to the 3/8" OD compression outlet of a water stop valve. The outlet is standard 3/8" OD compression and could be used with a PEX faucet riser (P1-20A) or a PEX toilet riser (P1-12DL). This stop would not work with 3/8" nominal PEX piping.
Can this valve connect to the existing angle valve?
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
Could this be used to reduce water pressure for a non-electric bidet? I'd be using it between the t-valve connector (7'8"x7'8"x3/8") and metal hose to the bidet attachment. (Reducing flow at the wall impacted the toilet too much.)
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
Can this be used for a drinking water application?
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
Product Details says this requires a stainless steel tube insert for use with PEX. ?Compatible with copper or PEX (PEX installations require a stainless steel tube insert)? Does it come with the insert? If not, where can you get one? Thank you.
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
Can I use this to connect a 3/8 copper pipe to a 3/8 braided stainless steel hose running to a dishwasher? The copper pipe is cut and does NOT have a connector. If this would not work, what should I use? I do not know how to solder.
Hello, Thank you for your question. We would require more information to determine if our Connector (or other product) is designed for that use. Please contact our Customer Support Team at 877-277-7755 and reference this review.
Can I use plastic tubing with this valve?
Hello, Thank you for your question. The BrassCraft 3/8 in. Female Compression Inlet x 3/8 in. Compression Outlet 1/4-Turn Straight Ball Valve, is Compatible with copper pipe, we do not recommend use on plastic tubing. If you have any other questions or need further assistance, please do not hesitate to contact us at 877-272-7755 thank you for choosing BrassCraft products!
I have and works fine. Have plastic on one side and metal on other.
Does the female end come with a rubber gasket similar to what supply lines often have?
No
Hello, The part uses a brass ferrule that seals the water as compression is applied. There is no rubber gasket on this item. If you have any further questions, you can call BrassCraft customer service at 877-272-7755. Thank you, BrassCraft
Yes it does - I used one this morning to attach to a supply valve that no longer turns completely off - it just screws on and seals with the rubber gasket - the line to the toilet or sink attaches to the other end
No. Both fittings are equipped with 3/8" brass compression washers.
Yes, it does. I'm curious why there are 4 answers saying otherwise. You can see in the 360� view that one end has a copper ring that can receive a 3/8" O.D. pipe, and the other end has a rubber washer and can only attach to a compression seat.
No rubber gaskets, it has a locking ring that works like a gasket, so there won't be any leaks
