- DWV fittings are white and used in non-pressure applications
- DWV fittings are installed using solvent cementing
- DWV fittings are for use where systems won't exceed 140°
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

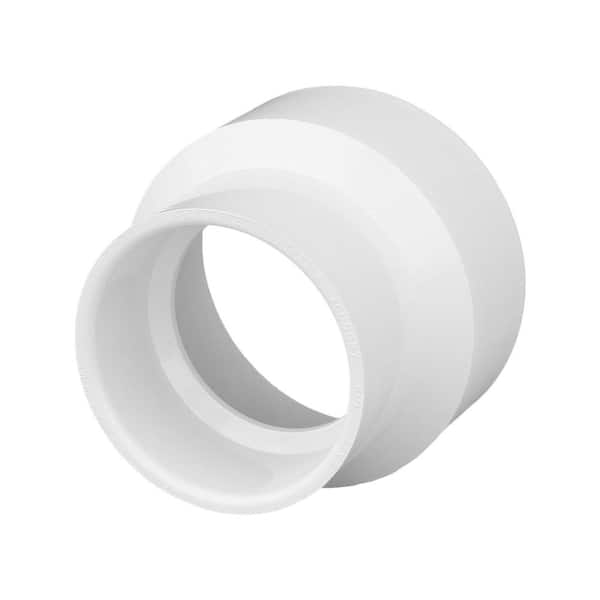

PVC fittings are for drain, waste and vent purposes. They are used in gravity-fed waste elimination systems and are for Non-Pressure systems where temperatures will not exceed 140°F. PVC is lightweight and easy to install. They require no special tools for cutting, and can be installed with solvent cementing, threading, flanging, and roll-grooved joining.
Highlights
- White fittings used in sanitary drain, waste, and vent (DWV), sewer and storm drainage applications
- Not intended for pressure use
- Maximum working temperature of 140 degrees Fahrenheit
- Are used in gravity-fed waste elimination systems and are for Non-Pressure systems
- Conforms to meet Standards: ASTM D 1784, ASTM D 2665, ASTM D 3311 and NSF 19
- Require no special tools for cutting and to be installed with solvent cement
- +/-6.06" ID and 6.62" OD
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Double Fitting Size | 6" x 10" | Fitting 1 size | 6" |
|---|---|---|---|
Fitting 2 size | 10" | Fitting Size Dimensions | 6" x 10" |
Product Length (in.) | 9.750 in | Single Fitting Size | 6" |
Details
Application | Non-Potable Water | Color Family | White |
|---|---|---|---|
Color/Finish | Black | Compatible Pipe Material | PVC |
Connection 1 | Hub | Connection 2 | Socket |
Connectivity | Solvent Cemented | DWV | DWV |
Features | Underground Use | Fitting or Connector Type | Bushing |
Fitting/ Connector Collection | PVC | Material | PVC |
Maximum working pressure (psi) | 0 | Maximum Working Temperature (F) | 140 |
Pack Size | 1 | Pipe or Fitting Product Type | Fittings & Connectors |
Product Weight (lb.) | 6.338 lb | Reducing Fitting | Yes |
Returnable | 90-Day | Schedule Type | Schedule 40 |
Warranty / Certifications
Manufacturer Warranty | Charlotte Pipe and Foundry Company (Charlotte Pipe) Products are warranted to be free from manufacturing defects and to conform to currently applicable ASTM standards for a period of five (5) years from date of delivery. |
|---|
Questions & Answers
Is the 8" end able to slip over an 8" PVC pipe or is it meant to slip into a 8" PVC elbow? And is the 10" end able to slip onto a 10" PVC pipe or into a 10" PVC elbow?
For an explanation and/or a recommendation, please contact our Technical Services Department at 800-438-6091.
Is it gold plated? Asking for a friend
This fitting is not gold plated.
Can you confirm the inner diameter measurements of both ends of the 10" x 8"?
the ID for the 8" portion of the fitting is +/- 7.62 inches. the ID for the 10" portion of the fitting is +/- 10.02 "
What is the OD of the larger 8" side?
just so you have all the dimensions: the 4" side OD is +/- 4.5 inches and the ID of that side is +/- 4.02 inches. On the 8" side the OD is +/- 8.62 inches and the ID is +/- 7.98 inches. hope this helps.
Does this slide over 8" pvc pipe on the small end and slide over 12" pvc on the large end?
the configuration for this fitting is Hub x Hub. Hub is a DWV term it's designed to accept the spigot end of a piece of pipe or the street end of a fitting: Goes over the spigot end of pipe or street end of fitting. For our recommendations, please contact our Technical Services Department at 800-438-6091.
Will this work to connect a 4" corrugated pipe to PVC pipe?
A direct connection to corrugated pipe is not possible without a transition fitting. Charlotte Pipe does not manufacture a transition fitting to corrugated pipe, however the corrugated pipe manufacturer may. Please refer to local code requirements prior to installation.
what size does it reduce to? 4in. to ?
goes from a 8" to 4".
How is 2 or 3 hole drainage pipe laid, holes up, down or on the side?
The position of the perforations depends on the application and project requirements. For more information please contact our Technical Services Department at 800-438-6091.
