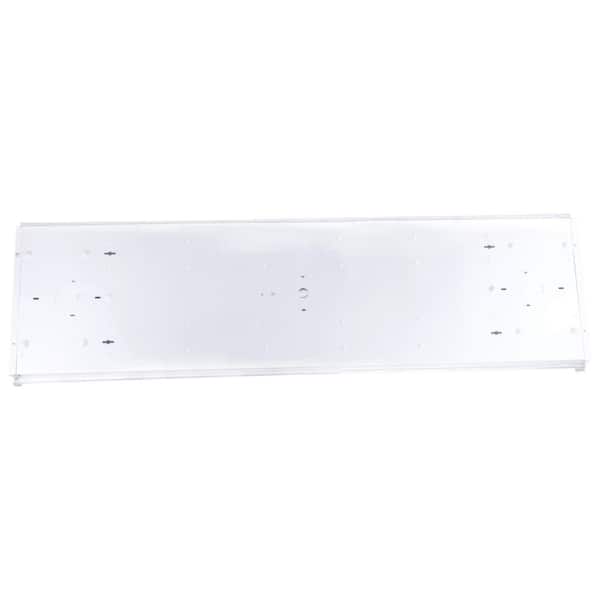

The Integrated LED square lens wrap from Commercial Electric is perfect for any application where high quality long-lasting light is needed. It installs easily and is a perfect 1 for 1 replacement for a traditional 4-Light fluorescent wrap. Its 5-year warranty, low operating cost and 50,000-hour maintenance free LED's are sure to save you money.
Product Height (in) | 2.82 | Product Length (in) | 47.96 |
---|---|---|---|
Product Width (in) | 14.13 |
Actual Color Temperature (K) | 4000 | Color Rendering Index (CRI) | 80 |
---|---|---|---|
Color Temperature | Bright White | Color/Finish | White |
Color/Finish Family | White | Damp/Wet Rating | Dry Rated (Indoor) |
Dimmable Capability | Non Dimmable | Features | No Additional Features |
Included | No Additional Items Included | Light Bulb Type Included | Integrated LED |
Location Use | Garage, Warehouse | Lumens | 8000 |
Material | Acrylic | Package Quantity | 1 |
Power Source | Hardwired | Product Length (ft) | 4 ft |
Product Weight (lb.) | 10.4 lb | Product Width (ft) | 1.18 ft |
Recommended Mounting Height (ft.) | 10 ft | Returnable | 90-Day |
Voltage (V) | 120/277 V | Wattage (W) | 70 W |
Certifications and Listings | ETL Listed, FCC Listed | Manufacturer Warranty | 5 Year |
---|
Yes. This fixture is a perfect 1 for 1 replacement for a 4 Light 32W Fluorescent Fixture
Yes There are knockouts at the ends of the fixture so one fixture can be wired in series to the next
The light will fully illuminate the space. The way the lens is designed it allows light to project out the sides of the fixture as well. I personally have 2 in my 2 Car Garage and I am able to perform any task throughout the garage.
No. This fixture is non-dimmable.
Tim, If you were using regular T5 bulbs, they typically deliver around 2100 lumens each (New They produce 2900 lumens or so but lumens directed up into the fixture are lost, as well as the gradual loss of illumination as the bulb ages, so average 2100) so figure about 8000 LED lumens for the fixture. If you were using T5 HO, they produce about 5000 each. After aging and light loss figure about 14,000 LED Lumens for the fixture. There is a 4 Light version of the fixture you identified which produces 8000 Lumens in your post. HD SKU 1005578285 Model # WR484080LSL 48" WRAP 4000K 8000L SQUARE LENS 120/277V Homedepot.com Link https://www.homedepot.com/p/Commercial-Electric-4-ft-8000-Lumens-Integrated-LED-White-Wrap-Light-4000K-WR484080LSL/313512347
This is sold a a single unit. 1 fixture per pack
Hi Barry, It can be used on a J Box or Be Direct wired. This fixture has knock outs on both ends as well as on the rear and has an internal channel cover so the wiring connections can me made internally in the fixture under the channel cover. Depending on how you feed the wires into the fixture based on your specific application, you may need to have an additional 1-2' Length of 12/2 or 14/2 wire, 3 wire nuts and a romex connector to secure the wire at the knockout. Thank you
No this fixture is non dimming
