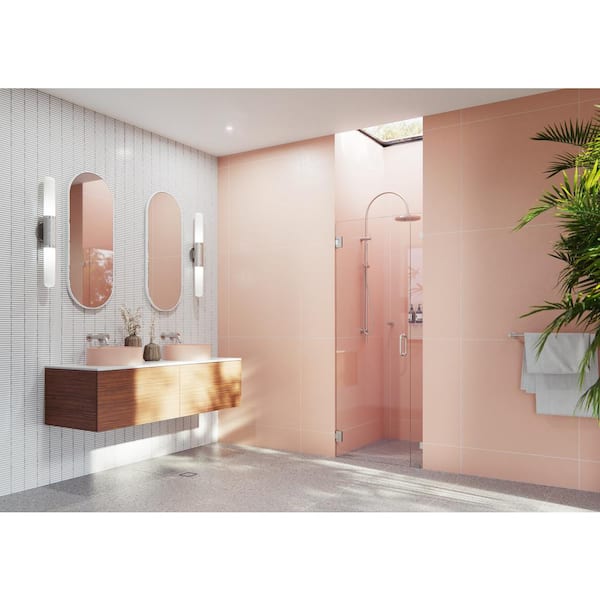

Illume 33.5 in. W x 78 in. H Wall Hinged Frameless Shower Door in Brushed Nickel Finish with Clear Glass
- For proper fit, premeasure enclosure with finished walls and tile
- Configuration: 24-30 in. swing door and Fixed panel
- Reversible for left or right-sided shower heads
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The beauty of the Illume wall-hinged walk-in shower enclosure lies in its simplicity of form. Taller than most competitor shower enclosures, our frameless 3/8 in. tempered glass panels come in a standard 78 in. height. Glass is treated on both sides with EnduroShield coating, which aids in repelling water and soap residue, allowing the panels to be fully reversible. In addition, our superior quality solid brass hardware is available in a variety of color finishes to suit any bathroom. With our extensive range of frameless shower door and panel sizes, the Illume enclosure by Glass Warehouse creates light, clean lines with a modern, sleek finish, whatever the size of your bathroom.
Highlights
- Glass treated with EnduroShield, the revolutionary, non-stick treatment that makes cleaning shower glass easy and repels soap scum, grime and dirt, reducing your cleaning time by up to 90%
- Important: When ordering shower door your total finished tile to tile opening must match shower model width
- Premium 3/8 in. (10mm) ANSI certified tempered safety glass
- Highest quality solid brass hinges, clips and handle included
- Model size 33.5" W x 78" H - (Width adjustability: 33.5" - 33.875")
- Model is available in 1/4 in. width increments if this size does not suit
- Easy installation
- Return Policy
Product Information
Specifications
Dimensions
Approximate Max Installed Width (in.) | 33.5 in. | Door Glass Thickness (in.) | 3/8" |
|---|---|---|---|
Installation Width | 33.5 in. | Product Height (in.) | 78 in |
Walk Through Opening Height (in.) | 78 in | Walk Through Opening Width (in.) | 24 in. - 30 in. |
Details
Door Handle Type | Bar | Door Type | Pivot |
|---|---|---|---|
Features | Double Hinged | Frame Finish | Brushed Nickel |
Frame Type | Frameless | Frame/Hardware Finish Family | Nickel |
Glass Finish | Clear Tempered | Glass Texture | Clear |
Handle Finish | Brushed Nickel | Included | Door Hardware |
Max Installed Width (in.) | 33.5 in | Product Weight (lb.) | 98.26 lb |
Returnable | 90-Day | Shower Type | Alcove |
Style | Modern |
Warranty / Certifications
Certifications and Listings | ANSI Certified | Manufacturer Warranty | Limited Lifetime Warranty |
|---|
Questions & Answers
What are the hinge locations on the door side? Or what are the dimensions from the bottom edge of the door up to the holes for the hinges? I need to know so I can put blocking behind the tile backer board.
Hello and thank you for your inquiry. The top hinge location is 200mm or 7.87" from the top of the door to the center of the hinge placement. The bottom hinge location is 194mm or 7.6378" from the bottom of the door to the center of the hinge location. This measurement is shorter due to the fact that the door is shorter in height to accommodate the door bottom sweep. Please feel free to contact our team directly at: inquiries@glasswarehouse.us with any further questions you may have, as we often do not receive these questions for several days after they are posted online. Thank you!
The model size is 33.75" W x 78" H - yet the width adjustability says: 32.75" - 33.125". So is the maximum width 33.75"? 33.125"? 34.15"?
Hello and thank you for your inquiry. All GW dual panel systems have an out of plumb allowance of 0.4” so this model has an absolute minimum width requirement of 33.75” with an allowance up to 34.15”. Please feel free to contact our team directly at: inquiries@glasswarehouse.us with any further questions you may have, as we often do not receive these questions for several days after they are posted online. Thank you.
We installed the door, and everything looks beautiful. However, it doesn’t close completely. I’m not sure if this is due to the size or the installation, but I’d appreciate your help in resolving it. It’s important that the door fully shuts. Let me know w
Hello and thank you for your inquiry. Please reach out to our team directly at inquiries@glasswarehouse.us and we will be happy to assist with this. Thank you.
Will the 30” wide door still have a stationary panel? If so, there isn’t an angled support bracket for the stationary panel on this model is there? Thanks
Hello and thank you for your inquiry. GW offers a unique modular system making out showers as close to purchase a custom-made shower, without the higher cost. The sizes of the door and stationary panels will vary depending on what stock is available the time of receiving your order. Typically for the 30" size model we would send a door (walk through) between 24" - 25" with a fixed panel (stationary) to suit between 5.5" to 4.5". The remaining 1/2" allocated to hardware. This model does not come with the 45degree support bar. Our door sizes range from 24" to 30", in 1/4” increments. If you would like a specific size door or stationary panel, before placing your order, please contact our team directly at: inquiries@glasswarehouse.us where they will provide instructions on how to do so. With any further questions you may have, please contact us directly as we often do not receive these questions for several days after they are posted online. Thank you!
Does this come in a shorter height? the tallest I can use would be 74 inches.
Hello and thank you for your inquiry. All clear GW glass panels are Premium 3/8 (10mm) or 5/16 (8mm) ANSI certified tempered safety glass that measures at 78” in height for full shower models and 58”-60" height for bath models and treated on both sides with EnduroShield®. We do not offer panels at 74" in height at this time. Please feel free to contact our team directly at: inquiries@glasswarehouse.us with any further questions you may have, as we often do not receive these questions for several days after they are posted online. Thank you.
I like to use GW-WH-38BN shower door and panel with GW-SFP-10 BN. From right to left. The shower door hinges on the right and secured to the wall. The 10 inch SFP stationary panel will secure to the other wall and form 90 corner with glass door panel.
Hello and thank you for your inquiry. We are happy to assist you with this, but we advise reaching out to our customer service team directly at inquiries@glasswarehouse.us so that we can best assist you with your requirements. Thank you!
The top of my shower opening is 33.75" and the bottom is 34", will this door fit?
Hello and thank you for your inquiry. All GW dual panel systems have an out of plumb allowance of 0.4” so this model has an absolute minimum width requirement of 33.75” with an allowance up to 34.15”. Please feel free to contact our team directly at: inquiries@glasswarehouse.us with any further questions you may have, as we often do not receive these questions for several days after they are posted online.
I already have a fixed panel. Is it possible to purchase a door solo at 33.5”?
Hello and thank you for your inquiry. GW door panels range in width from 24" - 30" in 1/4" increments, GW does not offer a single door panel that measures 33.5" at this time. Please feel free to contact our team directly at: inquiries@glasswarehouse.us with any further questions you may have, as we often do not receive these questions for several days after they are posted online.
Viewing 1-8 of 158
Customer Reviews
4.5 out of 5
5
114
4
15
3
7
2
1
1
11
Customers say the Glass Warehouse shower door offers exceptional quality and aesthetic appeal, with thick glass and sturdy hardware that enhance bathroom decor. Many appreciate the clear installation instructions and responsive customer service, which assists with sizing and replacements. While most find the installation straightforward, it is recommended to have two people due to the weight of the glass. Overall, the product is well-received for its value and design, making it a popular choice for bathroom remodels.
