1/2 in. x 25 ft. CSST MPT/FPT Connection Kit (1) 1/2 in. MPT Male Adapter (1) 1/2 in. FPT Female Adapter (1) CSST Pipe
- For use with Natural Gas and Liquid Propane applications
- Material is cleaner and easier to handle than black steel pipe
- Installers should be certified to install HOMEFLEX CSST
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

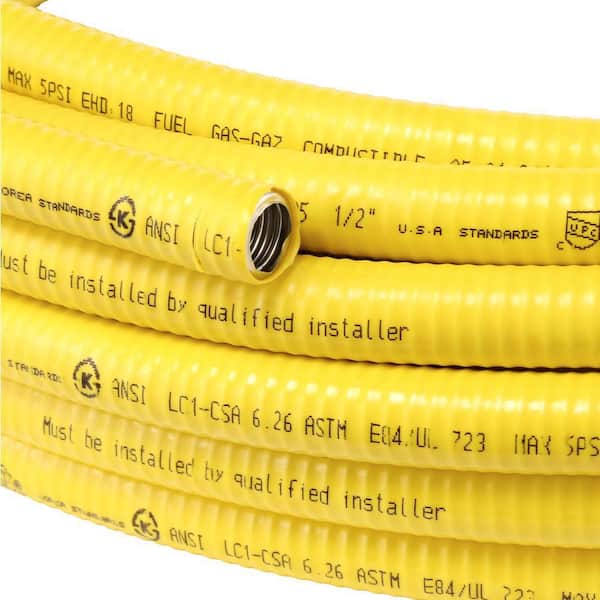

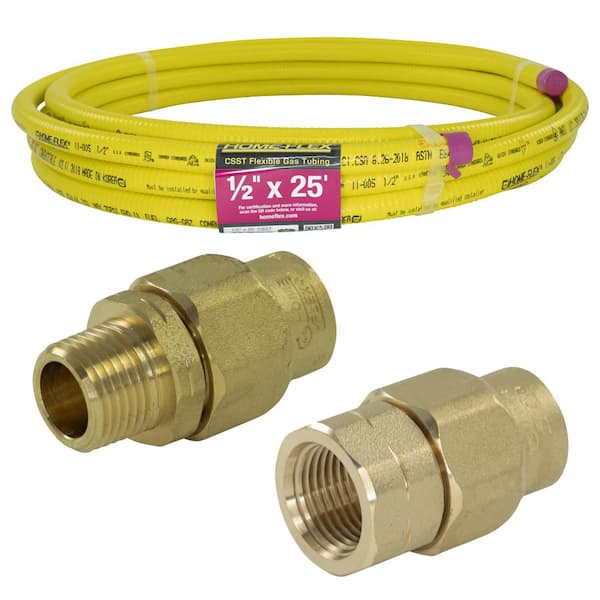

The CSST MPT/FPT Connection Kit comes with a 1/2 in. x 25 ft. roll of our CSST, Corrugated Stainless Steel, pipe. It also has 1 male fitting and one female fitting, one for each end. The fittings do not come attached.
Highlights
- 1/2 in. Dia
- Male fitting for one side, female fitting for the other side
- Thread into any standard pipe thread connections
- Easy and convenient
- 25 ft. length of pipe
- No special tools required
- This kit is only available at homedepot.com. However, your local Home Depot store may carry the individual components.
- View our HOME-FLEX electronic gas detector to identify in-home gas leaks
- Visit the HOME-FLEX CSST Collection to view all products and accessories to complete your project
- Return Policy
Product Information
Specifications
Dimensions
Actual inside diameter (in.) | .5 | Actual outside diameter (in.) | .625 |
|---|---|---|---|
Nominal Inside Pipe Diameter (In.) | 1/2" | Pipe Wall Thickness (In.) | .125 |
Product Length (ft.) | 25 ft |
Details
Application | Natural Gas, Propane | Color Family | Yellow |
|---|---|---|---|
Color/Finish | Yellow | Connectivity | Threaded |
Material | Stainless Steel | Maximum Flow Rate (gallons per minute) | 0 |
Maximum working pressure (psi) | 37 | Maximum Working Temperature (F) | 200 |
Minimum working temperature (F) | -20 | Pack Size | 1 |
Pipe Features | Flexible | Pipe or Fitting Product Type | Pipe & Tubing |
Product Weight (lb.) | 3.64 lb | Returnable | 90-Day |
Warranty / Certifications
Certifications and Listings | CSA Certified, IAPMO Listed | Manufacturer Warranty | 1 Year |
|---|
Questions & Answers
IS CSST LEAGAL TO USE IN QUEENS NEW YORK
Hi, Dave - The requirements for fuel gas pipe installation in Queens varies based on exact location and gas utility company. It is important for the installer to know the requirements for the address of the installation. Sorry to put this back on you, but you will need to contact the authority having jurisdiction for your location.
Do you need to be certified to buy this product
No. You do not have to be certified to purchase. You will have to be certified prior to performing an installation. Your inspector may ask to see your credentials prior to signing off on your installation. In order to become certified to install our HOME-FLEX CSST You must read our entire HOME-FLEX System Design and Installation Manual. Remember, all installations are to be performed in accordance with your local plumbing codes. If there is ever a conflict between the D&I manual and your local code, you are to follow the more stringent. Here is a link to the Installation Manual https://cdn2.assets-servd.host/fixed-puma/production/HOME-FLEX_Installation_Manual.pdf After reading the entire manual, you can register. Here is a link to our registration page (become certified) https://homeflex.com/get-certified
Can this be surface mounted ? Or does it have to be in side of the wall ??
Hi, Timmy - Yes it can be surface mounted depending on the application. For instance, if used outdoors, it must be encased in a watertight non-metallic sleeve to protect it against crush and the environment. We suggest you review our Design & Installation Manual available at homeflex.com/resources. Thanks.
does this flex pipe need a grounding wire or does it have a grounding layer within the coating?
Hi, Darrell - All yellow CSST needs to be bonded. It does not have an arc-resistant jacket. Please check out section 4.10 of our Design & Installation manual available at homeflex.com/resources.
can I use this for underground gas pipe
No. It's predominantly for indoor use. You should check out the HOME-FLEX UNDERGROUND product line for outdoor/underground use.
What is the difference between Model #11-436525-005 and Model #11-436435525-005 other than price and fittings?
Darren - The "436" has 2 male fittings; the "436435" has one male and one female fitting. Retail pricing (which is set by Home Depot) is odd. We'll bring it up to their management to review.
Is this gas line bonded already? Have a ground built in
No, Charles, this CSST gas tubing is not already bonded. It must be done with a #6 (or fatter) copper wire back to the grounding buss bar in the electrical panel. Please reference section 4.10 or our Design & Installation Manual found on our website. https://cdn2.assets-servd.host/fixed-puma/production/HOME-FLEX_Installation_Manual.pdf?dm=1637177788
Can this specific pipe be buried out side?
Can you bury it outside
Hi, Jon - No, not directly. It must be in a watertight, non-metallic conduit (such as a PVC pipe) that is at least 1/2" larger ID than the OD of the CSST. Please see more information in our HOME-FLEX CSST Design & Installation Manual found here: https://cdn2.assets-servd.host/fixed-puma/production/HOME-FLEX_Installation_Manual.pdf?dm=1637177788
Viewing 1-8 of 113
Customer Reviews
4.5 out of 5
5
358
4
50
3
12
2
9
1
40
Customers say the product is easy to install and works well for various applications, particularly for DIY projects. Many appreciate its flexibility and the clean connections it provides. However, some users have experienced issues with sealing and leaks, particularly related to the fittings and gaskets. Overall, while the product is generally well-received, attention to installation details is crucial for optimal performance.
