- Designed to withstand the most demanding environments
- Shallow Design for Maximum Wiring Room in Box
- Perfect for use in hospitals, schools, hotels, office buildings
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
Leviton Commercial grade devices are built to the most demanding standards for performance and reliability. Ideal for heavily used areas in homes, offices, schools and commercial buildings. They are the preferred choice of electricians, contractors and serious DIYers.
Highlights
- Large-head terminal screws, backed out and staked, accept No.10 copper or copper-clad wire
- Heavy-duty brass power contacts for maximum conductivity and plug retention
- Heavy-gauge, rust-resistant steel mounting strap
- Shallow design for maximum wiring room in box
- Click here to shop more Leviton products
- Captain Code 2023 NEC Code Changes
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions
Outlet Depth (in.) | 0.84 | Outlet Height (in.) | 4.06 |
|---|---|---|---|
Outlet Width (in.) | 1.53 |
Details
Amperage (A) | 20 A | Color Family | White |
|---|---|---|---|
Color/Finish | White | Commercial/Residential | Commercial |
Configuration | Standard | Device Style Type | Outlet w/o Wall Plate |
Durability | Not Applicable | Electrical Features | No Additional Features |
Grounding | Grounded | Included | No Additional Items Included |
Indoor/Outdoor | Indoor | Maximum Amperage (A) | 20 A |
Mounting Type | In-Wall | NEMA Configuration | NEMA 5 |
Number of Poles | 2 | Number of Receptacles | 2 |
Outlet Configuration | Duplex | Outlet Location | Wall |
Outlet Material | Thermoplastic | Outlet Type | Not Protected |
Package Quantity | 1 | Plug Configuration | 5-20 |
Rating | General Purpose | Receptacle Configuration | 5-20 |
Returnable | 90-Day | Voltage | 125 volt |
Voltage (V) | 125 V | Wall Plate Configuration | Duplex Outlet |
Wire Connection Location | Side | Wire Connection Type | Screw Terminal |
Warranty / Certifications
Certifications and Listings | UL Listed | Manufacturer Warranty | 10 Year Limited |
|---|
Questions & Answers
Can you use stranded wire with these?
Hi , Thank you for choosing Leviton. Yes, Terminal Accom.: 14-10 AWG.
Not recommended for mail house current. might eventually fry the outlet. Stranded is usually used on lights & fans etc.
Not recomended
Do these outlets accept 12ga wire push ins?
I've been taught that it's always a good idea to use the screw terminals for 12GA 20 amp circuits?
Yes, I did not use that but it does accept it.
To install back or side-wire accepts up to #10AWG copper or copper-clad wire.
Is this for a box of 10?
It appears Home Depot sells each receptacle separately.
No it is for a single device
Hello Munkin, The price for the 20 Amp Commercial Grade Self Grounding Duplex Receptacle, White is for quality of 1. Thanks for shopping Home Depot!
Yes, 10 in a box.
Viewing 1-3 of 3
Customer Reviews
4.9 out of 5
Loading Recommendations
Compare Similar Items
Configuration | |||
|---|---|---|---|
Standard | Standard | Standard | Standard |
Package Quantity | |||
1 | 1 | 1 | 1 |
Voltage (V) | |||
125 V | 125 V | 125 V | 125 V |
Grounding | |||
Grounded | Grounded | Grounded | Grounded |
Electrical Features | |||
No Additional Features | No Additional Features | No Additional Features | No Additional Features |
Related Products
20 Amp 125 V Duplex Smooth Face Outlet/Receptacle, Ivory (1-Pack) CR020-I
Leviton Commercial grade devices are built to the most demanding standards for performance and reliability. Ideal for heavily used areas in homes, offices, schools and commercial buildings. They are the preferred choice of electricians, contractors and serious DIYers.

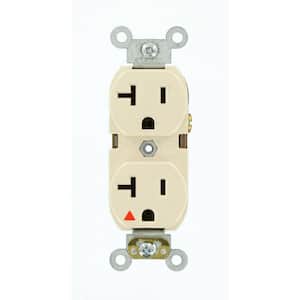

20 Amp 125 V Industrial Grade Isolated Ground Duplex Outlet/Receptacle, Light Almond (1-Pack) 5362-IGT
