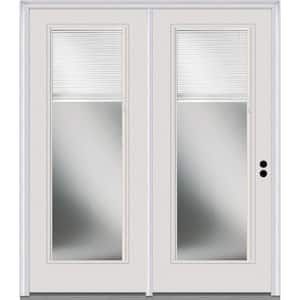

63 in. x 81.75 in. Clear Low-E Glass Internal Blinds Primed Fiberglass Prehung Left Hand Full Lite Stationary Patio Door
- 4-9/16 in. wide frame for 2 in. x 4 in. wall construction
- Features internal mini-blinds that make glass cleaning a snap
- Limited lifetime warranty
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
MMI Door Fiberglass Patio Doors are built to last and can add substantial curb appeal to your home. This fiberglass smooth patio door unit comes with our MSystem 2 Warranty on the Door Component and the Base Prehung System as well as a 10-year warranty on the Glass Lite. All of our fiberglass smooth patio doors are virtually maintenance free and will not warp, rot, dent or split. Our prehung door unit (called the MSystem) seals out the weather and practically eliminates air and water infiltration all together. Door size is 60 in. x 80 in. Unit dimension is 63 in. x 81.75 in. The suggested rough opening is 63.5 in. x 82.25 in. This unit comes with a 4-9/16 in. wide primed composite frame.
Highlights
- Fiberglass reinforced skin with insulated polyurethane core
- Door slab size: 60 in. x 80 in., (2) 30 in. x 80 in.
- Overall unit dimension: 63 in. x 81.75 in.
- Suggested rough opening: 63.5 in. x 82.25 in.
- Patio unit has one active door and one inactive door
- Prehung on a 4-9/16 in. primed composite frame with matching brickmould attached
- Frame is 100% composite poly-fiber material that will never warp, splinter or rot
- Prehung unit comes with 3 satin nickle hinges, fully weatherstripped with one continuous sill running the entire width of the unit
- Glass description: Internal white blinds are encased in clear, tempered, Low-E glass
- Patio door unit comes primed, ready to paint
- Center-hinged left-hand inswing
- When viewed from the exterior of the home, the door on the right side is active, hinges are on the left and the door swings into the home
- Active door and frame are prepped for both entry knob and deadbolt; 2-1/8 in. bore diameter with 2-3/4 in. backset (locks sold separately)
- Patio unit is center hinged with one active door; screen can be attached to sill; screen not included
- Will meet or exceed federal guidelines for energy efficiency (where and if applicable)
- Return Policy
Product Information
Additional Resources
Shop All MMI DOORSpecifications
Dimensions
Actual Door Height (in.) | 81.75 in | Actual Door Thickness (in.) | 1.75 |
|---|---|---|---|
Actual Door Width (in.) | 63 in | Door Height (in.) | 81.75 in |
Door Thickness (in.) | 1.75 in | Door Width (in.) | 63 in |
Nominal Door Height (in.) | 80 in | Nominal Door Thickness (in.) | 2 in |
Nominal Door Width (in.) | 60 in | Rough Opening Height (in.) | 82.25 in |
Rough Opening Width (in.) | 63.5 in |
Details
Bore Type | Double Bore | Color Family | White |
|---|---|---|---|
Color/Finish | Primed | Core Type | Solid Core |
Door Configuration | Double Door | Door Glass Insulation | Dual Pane, Low-E, Tempered |
Door Handing | Left-Hand/Inswing | Door Type | Center-Hinged Patio Door |
Features | Brickmold, Built-in Blinds, Double Pane, Insulated, Lockset Bore (Double Bore), Tempered Glass, Weatherstripping | Finish Type | Primed |
Frame Material | Composite | Hinge Type | Surface mount |
Included | No Additional Items Included | Material | Fiberglass |
Number of Lites | 1 Lite | Product Weight (lb.) | 160 lb |
Returnable | 90-Day |
Warranty / Certifications
Energy Star Qualified | North-Central, Northern, South-Central, Southern | Manufacturer Warranty | MMI DOOR Fiberglass Smooth doors are built to last. Each door comes with a Limited Lifetime Warranty on both the door component and the prehung MSystem and a 10 year glass lite warranty. Failure to finish all six sides of the door component will void all warranties. |
|---|
Questions & Answers
Can the hinges be ordered in a rubbed bronze finish? Also, does this have a multi-point latching system?
This door only comes with the satin nickel hinges as shown on HomeDepot.com. You can order it with different hinge finish, but this would need to be special ordered in-store at your local Home Depot. Also, this does not come with a multi-point locking system.
Please provide what significant difference, besides an included screen, Model Z020539R at 160 lbs has from Model Z001616R, with Low E, at 224 lbs?
Model# Z001616R has Low-E clear glass and does not come with a screen. Model# Z020539R is standard clear glass and does come with a screen. Those are the only differences between the two models.
Does this door utilize wood or MDF? If it contains MDF, is it MR MDF or regular MDF? Finally, which parts of the door are made with MDF?
This patio door unit contains no MDF components. The only wood used is the lockblock in the interior of the door slabs (between the skins, to hold the knob and deadbolt). The frame is a non-MDF composite material as well as the substrate of the sill.
What is the Performance Grade of this door?
The U-factor is 0.30 and the SHGC (Solar Heat Gain Coefficient) is 0.15.
Do the blinds tilt and go up and down as well?
Yes, the blinds raise, lower and tilt.
Is the unit dimension the outside to outside measurement of the brickmold, or of the jamb itself?
The unit dimension is the outside-to-outside dimension of the frame. For brickmould dimensions, just add 2.5" to the unit width and 1.25" to the unit height.
the unit says LOW-e glass and internal mini blinds. Could you clarify if the glass is argon filled ? If not can that be requested with internal blinds?
Yes, the space between the glass panes is filled with argon and thermally sealed.
do you have any screens for these doors
They won't sell you the screen separately, but will sell you a unit that includes it for $500 more. Expensive screen!
We do not sell patio door screens separately on HomeDepot.com, however we do sell the patio and door with screen included. For the same style door with the screen included, please see model# Z020540R.
