- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE Pipe
- Requires no special tools to install on hot or cold water lines
- Works on wet lines, rotatable after installation & removable
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

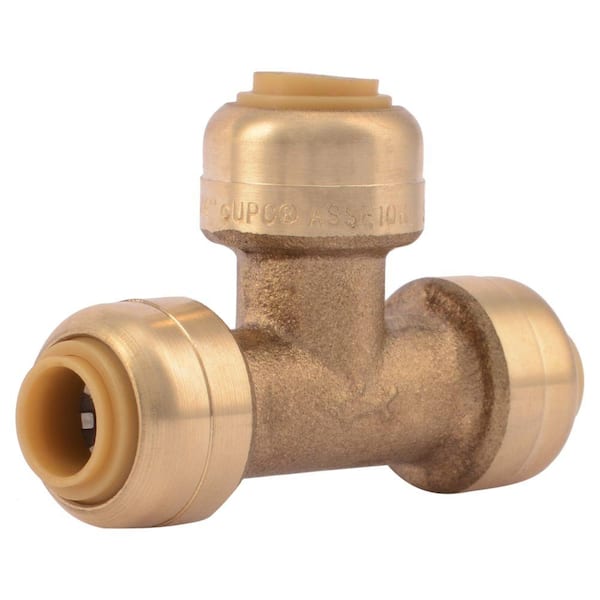

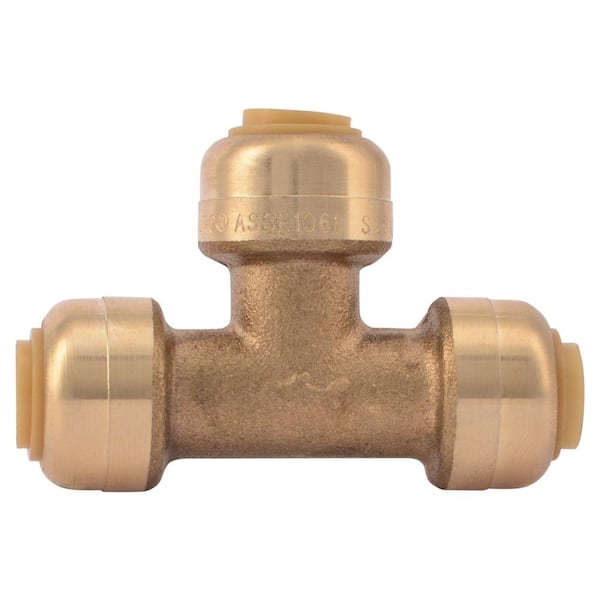

SharkBite 1/4 in. (3/8 in. O.D.) Push-to-Connect Brass Tee Fitting is the fastest way to connect PEX, Copper, CPVC, PE-RT, or HDPE pipe in any combination. No soldering, clamps, unions, glue, or special tools required. Simply insert the pipe and the teeth bite down and grip tight, while a specially formulated O-ring compresses to create a watertight seal. Changes can easily be made by rotating the fitting after installation. Removing the fitting is just as fast using a disconnect tool so fittings and valves can be easily changed or reused. Designed with stainless steel gripping teeth for a secure connection, chlorine-resistant O-ring for a long-lasting seal and backed by a 25-year warranty.
Highlights
- Push-to-Connect fittings are ideal for installation in tight spaces
- Rated to 200°F and 200 PSI
- Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
- Can be installed on wet or dry lines and pressure tested immediately, no waiting on soldered joints to cool or solvents to dry
- Low-lead DZR corrosion resistant brass body
- Code approved, IAPMO listed, for details see Specifications
- 25-Year Warranty when used with PEX, copper, CPVC & PE-RT Pipe
- 5-Year Warranty when used with SDR-9 HDPE Pipe
- Listed by IAPMO and design certified and listed to ASSE 1061/NSF 61
- Meets all UPC, IPC, and cUPC requirements
- Demount clip allows user to release the fitting from the pipe for convenient installation flexibility (sold separately)
- Connects copper, CTS CPVC, and PEX tubing in any combination
- 1/4 in. Pipe Insertion Depth = 13/16 in.
- Shop all SharkBite Fittings
- Shop the SharkBite Polyethylene Pipe Collection
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Additional Resources
Shop All SharkBiteSpecifications
Dimensions
Double Fitting Size | 1/4" x 1/4" | Fitting 1 size | 1/4" |
|---|---|---|---|
Fitting 2 size | 1/4" | Fitting 3 size | 1/4" |
Fitting Size Dimensions | 1/4" x 1/4" x 1/4" | Product Height (in.) | 1 in |
Product Width (in.) | 2.3 in | Single Fitting Size | 1/4" |
Triple Fitting Size | 1/4" x 1/4" x 1/4" |
Details
Application | Potable Water | Color Family | Brass |
|---|---|---|---|
Color/Finish | Brass | Compatible Pipe Material | Multi-Purpose |
Connection 1 | PTC | Connection 2 | PTC |
Connection 3 | PTC | Connectivity | Push Fit |
Features | Lead Free, Removable | Fitting or Connector Type | Tee |
Fitting/ Connector Collection | Brass | Material | Brass |
Maximum working pressure (psi) | 200 | Maximum Working Temperature (F) | 200 |
Pack Size | 1 | Pipe or Fitting Product Type | Fittings & Connectors |
Product Weight (lb.) | 0.147 lb | Reducing Fitting | No |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | For warranty information on this product, please call our Internet Customer Service Center at 1-877-700-4242. |
|---|
