- 1/3 HP cast iron pump with 3000 GPH flow rate
- Will pump up tp 25 ft. of vertical height
- Fits 12 in. diameter or larger sump pit
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Get an immediate answer with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product

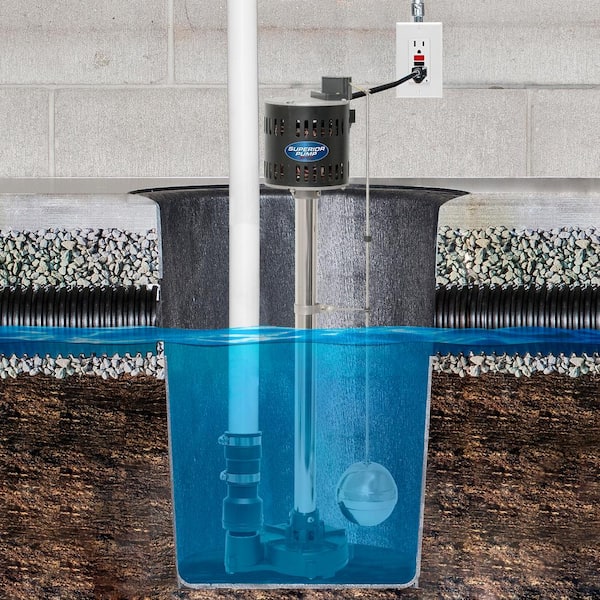

This 1/3 HP Superior Pump Cast Iron & Stainless-Steel Pedestal Sump Pump is built with only the highest quality materials that you can expect in a sump pump. It provides strong performance by pumping up to 3,000 gallons per hour and up to 20 vertical feet. The pump features cast iron and stainless-steel construction capable of handling water temperatures up to 180 degrees Fahrenheit. It is equipped with a fully-adjustable, automatic float switch and a stainless-steel float ball that turns the pump on and off This powerful, yet energy-efficient (2.76 amp), thermally protected motor is designed for longer life and durability. It also comes standard with a robust stainless-steel impeller capable of passing solids up to 3/8 in. in diameter, 1-1/2 in. FTP discharge, and a 10 foot waterproof power cord. The pump base with top inlets allow for increased water flow. Safety is at the core of these pumps with certifications from both UL and CSA and is backed by a 3-year limited warranty.
Highlights
- Pumps up to 3000 GPH and up to a maximum vertical lift of 20 feet
- Stainless-steel float ball, column, drive shaft and impeller makes the pump more durable and extends the life of the pump
- Cast iron base and stainless-steel impeller will handle up to 3/8 in. solids
- Adjustable automatic float switch
- 1-1/2 in. FPT discharge
- 10 foot power cord with grounded plug
- Thermally protected motor prevents overheating
- Handles water temperatures up to 180 degrees fahrenheit
- 3-Year warranty
- Superior Pumps are 100% factory tested
- Click here for more information on Electronic Recycling Programs
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 34.5 in, W 7 in, D 9 in
Dimensions
Product Depth (in.) | 9 in | Product Height (in.) | 34.5 in |
|---|---|---|---|
Product Width (in.) | 7 in | Switch-Off Height (in.) | 4 |
Switch-On Height (in.) | Adjustable |
Details
Amperage (A) | 2.76 A | Cord Length (ft.) | 10 ft |
|---|---|---|---|
Discharge Flow @ 0 ft. (gallons/hour) | 3000 | Discharge Flow @ 0 ft. (gallons/min) | 50 |
Discharge Flow @ 10 ft. (gallons/hour) | 2280 | Discharge Flow @ 10 ft. (gallons/min) | 38 |
Discharge Flow @ 15 ft. (gallons/min) | 35 | Features | Bottom/End Suction, Corrosion Resistant, Self-Priming, Thermal Overload Protection |
Housing Material | Cast-Iron | Impeller Material | Stainless Steel |
Maximum Horsepower (hp) | 1/3 | Maximum Pressure (PSI) | 8 PSI |
Maximum Working Temperature (F) | 180 | Minimum Sump Basin Diameter | 11 to 14 |
Minimum working temperature (F) | 32 | Outlet Diameter Connection (in.) | 1-1/2 FPT |
Pack Size | 1 | Power Type Required | AC |
Product Weight (lb.) | 22.2 lb | Pump Switch Type | Vertical |
Returnable | 90-Day | Vertical Lift (ft.) | 25 |
Voltage | 120v |
Warranty / Certifications
Certifications and Listings | CSA Listed, UL Listed | Manufacturer Warranty | 3 year limited |
|---|
Questions & Answers
Can I buy just the drive shaft?
Hi Aman, Yes. Go to www.superior-pump.com and click on the PARTS tab in upper right of the page and then on the pedistal pumps. Click on your pump and the parts are there and you can place an order there. Thanks
Can there be water where the electric lines and motor is on the top of a pedistal sump pump ?
Hi Cory, NO, the motor is not submersible and should not get wet. Do not let the motor go into the water
How low can this pump take the water down in sump pit? I would also like it to start when water reached the 9 inch level in pit. Is this a good sump pump to meet these expectations? Is it quiet? Thanks, Scott
Hi Scott, Yes, The pump can be adjusted to come on between 4" and 9" Thanks
will this pump fit into a 5 gallon plastic bucket? Thanks
I had a pedestal sump pump that did fit inside a 5 gallon pail but was not this one and I think the float ball was smaller. I don't know it they, sump pumps, are all the same size. If this does fit I would be concerned that the float ball might get hung up inside the bucket so it wouldn't raise to start the pump. Sorry I couldn't be of more help.
The configuration of the output and the float make the overall width to wide for a 5 gal bucket. If it is possible to rotate the float switch to the side it would make it fit a 5 gal bucket. I have not tried this myself, but it would be improvement, Other than that it is a good pump.
Hi there, It will fit but it might be a tight fit. Be sure the float ball is not rubbing on the side of the bucket where it can become stuck. Thanks
Better pump dimensions; I would like to know the distance from the bottom of the pump base that would sit in the bottom of the sump pit to the BOTTOM of the motor housing. I want to install a radon mitigation system using my sump pit and I want the motor outside of the pit enclosure so that the motor and electronics are separated from the area where there could be water and moisture. Yes, I know I will have to seal around the pump pedestal; I will be adding better sensors and controllers than a float ball so that is not an issue.
From my recollection with 80% confidence, it is about 34 in to the top of pump. So take 8 in off you get about 26 and to be safe, assume it is 22-26in
I want to know the height of the pump. Bottom of Impeller base to bottom of pump and overall height.
Hi Matt, The overall height of this pump. #92301 ks 34". This is from the bottom of the base to the top of the switch Thanks
Dear Matt, I assume your question asks about the physical dimensions of the Superior Pump 1/3 HP Cast Iron Pedestal Sump Pump. You can easily find the answer on the Home Depot website for this product at: https://www.homedepot.com/p/Superior-Pump-1-3-HP-Cast-Iron-Pedestal-Sump-Pump-92301/206471980 Scroll down the page until you find the "Specifications" section. That is where you will find the answer to your question.
What is the minimum water level for the pump to start? I have very shallow pit.
Probably 8inches of water. As long as the bottom of the pump is submerged it should be ok
The OFF level is about 4 in (fixed) and the ON level is adjustable. Since the switch lever travels about 3 in, the ON level can go from minimum 7 in to a max about 14-16 in (my estimate)
Our sump pump rarely turns on so I have little actual experience to go on. However, I just went down and manually moved the shaft with the ball at the end and it appears to travel about 6" before it activates. The actual water level will most likely be several inches higher than that when it activates since the bottom of the ball does not actually rest at the bottom of sump when the sump is dry (it is a couple of inches higher than that) and the water level will probably need to rise a few inches before the ball will begin to move. FYI, our sump is approximately 27" deep overall and we have never had the sump overflow.
Hi Bill, This pump would need 3-4" as the min depth to turn the pump on and off at about 2 1/2" depth Thanks
You can adjust where the pump will start by moving the slides up or down on the rod for the ball float. I don't know what the least amount of water depth would be.
as low as you set the ball to kick on
What kind of bearing is in the water portion?
I don't think there is any bearing in the water. The motor is on top and a long drive shaft goes to the bottom connecting to a spinning blade (see manufacture pictures)
Hi there, There is a bushing pressed into the base, not a bearing Thanks
It is a metal bearing. It's all metal construction.
I don't know what type of bearing is in the water. I've had this sump pump for several years working in my garage and have had no problems. As long as the metal float rod stays straight it works fine.
I'm pretty sure it is just a bushing not a ball bearing.
Viewing 1-8 of 24
Customer Reviews
4.6 out of 5
5
205
4
40
3
6
2
1
1
14
Customers say the Superior Pedestal Sump Pump is well-built with a sturdy cast iron base and stainless steel components, making it a reliable choice for long-term use. Many users appreciate its quiet operation and easy installation process. While most reviews highlight positive experiences with performance and durability, some customers encountered issues with defective units or specific installation components. Overall, the pump is praised for its efficiency and quality, making it a recommended option for sump pump needs.
