- Compatible with shallow well or drive point applications
- Cast-iron pump with reinforced lag bolts ensures durable use
- Self-priming pump efficiently removes air from its passage
- View More Details
Free & Easy Returns In Store or Online
Return this item within 7 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product
This pitcher pump is made with cast iron for optimum strength. It has a rugged design for a long service life. This pump has a maximum lift of 25 ft.
Highlights
- Designed for shallow well or drive point applications for depths to water of 25 ft. or less
- Reinforced lag bolts for maximum strength
- Pitcher spout designed to hold pail for easy operation
- Low lead
- Return Policy
- California residentssee Prop 65 WARNINGS
Product Information
Specifications
Dimensions: H 16.25 in, W 8.5 in, D 7.75 in
Dimensions
Product Depth (in.) | 7.75 in |
|---|---|
Product Height (in.) | 16.25 in |
Product Width (in.) | 8.5 in |
Details
Amperage (A) | 0 A |
|---|---|
Discharge Flow @ 0 ft. (gallons/hour) | 1 |
Discharge Flow @ 0 ft. (gallons/min) | 0.02 |
Discharge Flow @ 10 ft. (gallons/hour) | 1 |
Discharge Flow @ 10 ft. (gallons/min) | 0.02 |
Features | Self-Priming |
Housing Material | Cast-Iron |
Impeller Material | Not Applicable |
Included | No Additional Items Included |
Inlet Connection | Threaded female |
Maximum Horsepower (hp) | 0 |
Maximum Pressure (PSI) | 0 |
Maximum Working Temperature (F) | 95 |
Minimum working temperature (F) | 32 |
Power Type | Manual |
Product Weight (lb.) | 19 lb |
Returnable | 7-Day |
Vertical Lift (ft.) | 25 |
Warranty / Certifications
Certifications and Listings | IAPMO Certified |
|---|---|
Manufacturer Warranty | 1 year |
Questions & Answers
Can this pitcher pump be used on top of well pump, so when the power goes out we can use the pitcher pump for water
Hello Gami, This pitcher pump could be installed on top of a well. Please follow the installation instructions and note the maximum lift is 25 feet. If you need further assistance do not hesitate to contact Water Source customer service at (800) 346-7611
where is the foot valve located and how to remove does the pump come with a foot valve
Daniel Thank you for your question. The foot valve is always located at the bottom of the pipe. Its' function is to hold water in the pipe so that the unit is always primed. The foot valve is sold seperately. Regards, Everbilt Customer Service
Can this be used with 2 inch pipe?
can this pump be used with a 1 1/2" or 2" pipe
Hello Dave, This product is designed for a 1-1/4 drop pipe with a water level less than 25 feet. Thank you, Customer Service
How much force or pressure ( pounds) I required to operate say 15 ft deep well sandy substrate? Thanks, frank
Frank Thank you for your question. The pitcher pump will draw water down to 25 feet. Regards, Everbilt Customer Service
What is the inlet size?
Tomb Thank you for your question. The inlet size is 1 1/4". Regards, Everbilt Customer Service
Does this need to be taken out in the winter? What winter prep do you need to do?
Mike, thank you for the question. The pitcher pump will self-drain if the handle is left in the ‘up’ position and the foot valve is removed. If you use a foot valve, you can prevent the pump and pipe from freezing only by removing the pump from the well and keeping the water in the well below the frost line. Best regards Watersource Customer Service.
Is there plastic in or on this pump?
David, Thank you for your question. No, there is no plastic in the pitcher pump. Regards, Everbilt Customer Service
This pitcher pump is primarily constructed of cast iron. The handle is coated steel. Based on available information, there doesn't appear to be any plastic components.
What size piping is compatible?
This pitcher pump is designed for use with 1 1/4" threaded steel or PVC pipe. I recommend reviewing the Instruction / Assembly manual found under "Additional Resources" on the product page for more details on compatible piping and other important considerations.
Viewing 1-8 of 69
Customer Reviews
4.3 out of 5
Loading Recommendations
Compare Key Features
Product Snapshot | |||
|---|---|---|---|
Great for homeowners looking for a manual water pump, making outdoor chores easier. | Ideal for homeowners looking for a manual pump, making water removal easier. This durable and efficient pump is perfect for various tasks inside and outside the home. | Ideal for homeowners looking for a decorative accent , making garden watering easier . This cast iron pitcher pump is perfect for shallow wells or drive point applications up to 25 ft. deep .. | Ideal for homeowners looking for a portable pump, making water transfer easier and more efficient. |
Flow Rate | |||
32 oz. per stroke | 360 GPH | ||
Maximum Head Lift | |||
25 ft | 5 ft. | 25 ft. | 50 ft |
Power Source | |||
Manual | Manual | Manual | Electric |
Horsepower (HP) | |||
0 | 0 | 0 | 1/10 |
Suction Lift | |||
25 ft | 25 ft. |
Related Products

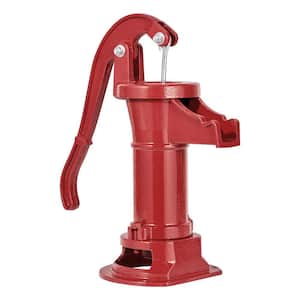

25 ft. Maximum Lift, Well Hand Pitcher Pump, Antique Cast Iron Manual Hand Water Pump, NPT 1-1/4 in. Connection, Red
25 ft. Hand Pitcher Pump. Whether you're watering your garden, irrigating farmland, or preparing for emergency backup, this well hand pitcher pump is your go-to solution. Built from cast iron with a rust-resistant coating, it ensures long-term durability and stable performance even in harsh outdoor conditions. With a standard NPT 1-1/4 in. connection and 25 ft. maximum lift, it delivers efficient water access to meet your needs-no electricity required.
Cast Iron Pitcher Pump
The K2 Pumps Pitcher Pump is the perfect decorative accent feature for your garden. The pump is constructed of heavy-duty cast iron for strength and durability. IAPMO Certified Lead-Free to NSF/ANSI/CAN 61. Designed to use with a shallow well or drive point application, for water depths up to 25 ft. deep. K2 Pumps also manufactures a universal repair kit that includes both the lower leather valve and cup Leather, part number PAWP00003K.

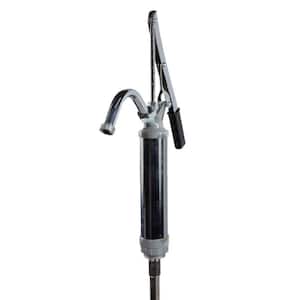

Standard Duty Lever Action Hand Pump
The lever piston hand pump from FILL-RITE is designed for smaller quantity pumping applications (11 oz. /stroke). Compatible with light oils, transmission fluid, diesel, hydraulic fluid, or kerosene - every shop or garage should have this tool in the toolbox. Each pump comes with a spout that can be attached to a garden hose for longer pumping distances and a 34 in. telescoping steel suction pipe.

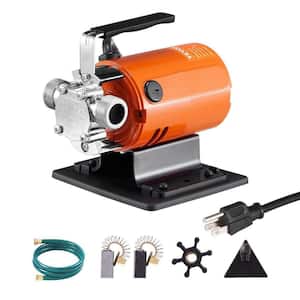

120-Volt 360 GPH Portable Water Transfer Pump-1/10 HP Utility Pump with Hose Kit for Garden Pool Pond Aquarium
