1/2 in. Push-to-Connect x 3/4 in. MHT Brass Washing Machine Outlet Box

SharkBite

Push to Connect system, quick and easy installation in seconds
3/4 in. Machine Host Thread - Quarter Turn Brass Ball Valves
Forward mounted valves give easy access for on/off operation

View Full Product Details

Questions & Answers

Viewing 25-30 of 30

Is this product fire rated?

ByNov 21, 2015

2 Answers |

Answer This Question

Hi Max, No, this is not a fire rated outlet box.

By|Jan 14, 2020

(1)

Plastic? Really?

By|Jan 14, 2020

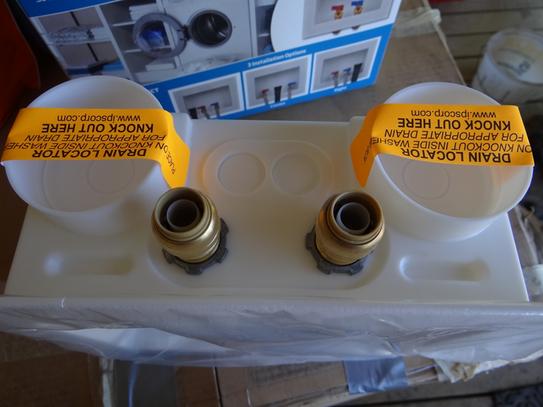

It appears there are three knock outs for drain fittings. What size are they?

ByJun 23, 2015

2 Answers |

Answer This Question

The knockout holes accept 2" PVC

By|Apr 30, 2025

(13)

2 & 38 inch inside dimensions

By|Apr 30, 2025

(1)

What are the actual dimensions of the box without the faceplate on?

ByApr 7, 2015

2 Answers |

Answer This Question

The box states a rough opening of 5 3/4W x 6 1/8H x 3 3/4D. Face plate dimensions : 1- 3/16W x 8 13/16 H

By|May 3, 2023

(1)

The dimensions of this product are as follows: Assembled depth: 4" Assembled height: 9.5" Assembled width: 10.5"

By|May 3, 2023

(1)

can this product be used in a retrofit remodel

ByJan 23, 2015

2 Answers |

Answer This Question

Yes, this box can be used in a retro-fit model. Either you can replace the existing box with a SharkBite box and drywall around the opening. Or take the valves out of the SharkBite box by twisting the SharkBite connections off and then removing the valve from the box and adding to your existing box.

By|May 3, 2023

(4)

The box indicates it is good for a remodel

By|Jun 3, 2020

Will this fit in a 2x4 wall?

ByDec 10, 2014

2 Answers |

Answer This Question

Yes, this will work. The depth of the outlet box is 3 3/4", which is the same as the width of a 2 x 4

By|May 3, 2023

(2)

yes

By|Jan 14, 2020

can it be installed up side down

ByNov 12, 2014

2 Answers |

Answer This Question

Yes this Washing Machine Box can be installed for Center Drains (upside down), you can unscrew the valves and move them to the opposite end for a Center Drain (Upside down) installation. The box also works with left or right drain configurations so it is a universal box for 3 types of drain configurations.

By|Jan 14, 2020

(8)

Yes

By|Dec 18, 2018
